Dahua IPC-PDBW82041-B360-S2 | 4× 5MP Multi-Sensor Dome | 20MP | 360° | Smart IR 30m | Facial Detection | IP67 IK10 | White
Dahua IPC-PDBW82041-B360-S2 | 4× 5MP Multi-Sensor Dome | 20MP | 360° | Smart IR 30m | Facial Detection | IP67 IK10 | White
Couldn't load pickup availability
Product description

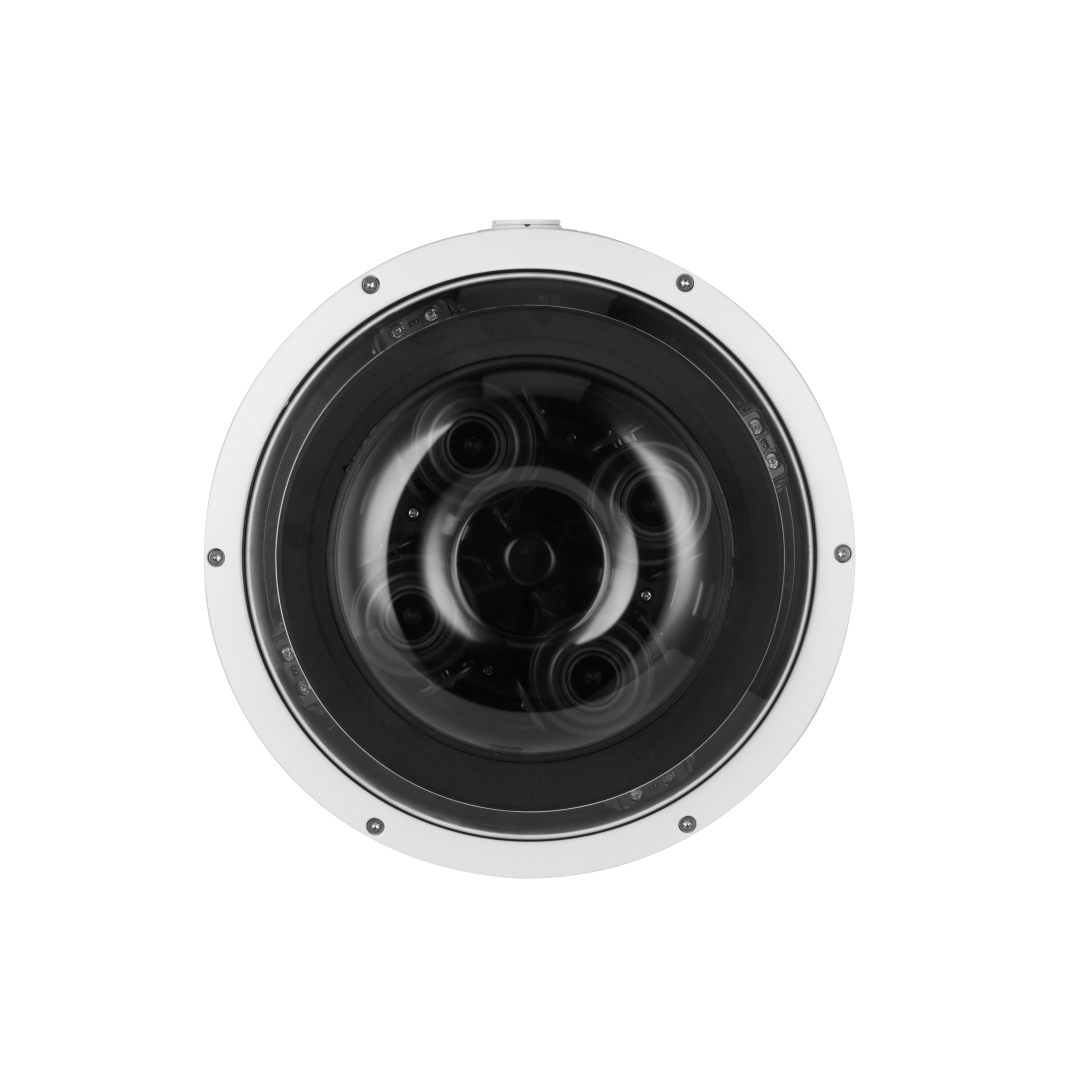

Dahua IPC-PDBW82041-B360-S2 — 4× 5MP multi-sensor 360° dome camera with 20MP total resolution and facial detection
The Dahua IPC-PDBW82041-B360-S2 is a professional multi-sensor 360° dome camera with four independently adjustable 5MP lenses for complete panoramic coverage without blind spots. All four channels support facial detection, people counting, and perimeter protection via AI simultaneously. With Smart IR night vision up to 30m and a robust IP67 + IK10 housing, this camera is ideal for large-scale surveillance of warehouses, campuses, and transit stations.
Specifications
- Resolution: 4× 5MP (20MP total) @ 25/30 fps per channel
- Sensors: 4× 1/2.7" CMOS
- Lenses: 4× adjustable lens (100°–42° per lens)
- Viewing angle: 360° total (4 independent channels)
- Night vision: Smart IR, max. 30m
- AI: Facial detection, people counting, perimeter protection, IVS (4 channels simultaneously)
- Protection rating: IP67 + IK10
- Audio: Two-way via connection cable
- Alarm: 3 in / 2 out
- SD card: Yes, max. 256GB
- Power: PoE / 12V DC
- ONVIF: Yes
- App: Dahua (DMSS)
- Color: White
- Dimensions: Ø286.1 × 111.3 mm
- Warranty: 3 years
Applications
- Complete 360° surveillance without blind spots with 20MP total resolution
- Facial detection and people counting on all 4 channels simultaneously
- Warehouses, transit stations, campuses, and public spaces
- Replacing multiple cameras with a single multi-sensor solution
Buy safely from an authorized Dahua Partner
We are an official Dahua Partner (no. 7090800010). With us, you buy original products specially suited for the Benelux market, FR, and DE with the correct language, guaranteed software updates, and expert advice.
- ✔100% original Dahua products
- ✔Fully supported firmware updates
- ✔3 or 5 years warranty (for selected products) instead of 2 years
- ✔Staff trained in the latest Dahua (AI) technology
Product specifications
| Manufacturer | Dahua |
|---|---|
| SKU | IPC-PDBW82041-B360-S2 |
| EAN | 6923172545251 |
| Version | 180/360º camera's |
| Color | Insight |
| Dimensions | 111.3 mm × Φ286.1 mm |
| Warranty | 3 years |
| Lens | 2.8mm |
| ONVIF | Ja |
| Indoor/Outdoor | Outdoor |
| Resolution | 5MP |
| PoE support | Yes |
| Night vision | Yes |
| Audio | Two-way via connection cable |
| Horizontal viewing angle | 360° |
| Optical zoom | Nee |
| SD card slot | Yes, max. 256 GB |
| Mobile app | Dahua (DMSS) |
Specifications (PDF)
