Dahua IPC-PFW81642-A180 | 4× 4MP Quad-Lens Panorama Bullet | 16MP | 180° | Smart IR 30m | IP67 IK10 | White
Dahua IPC-PFW81642-A180 | 4× 4MP Quad-Lens Panorama Bullet | 16MP | 180° | Smart IR 30m | IP67 IK10 | White
Couldn't load pickup availability
Product description

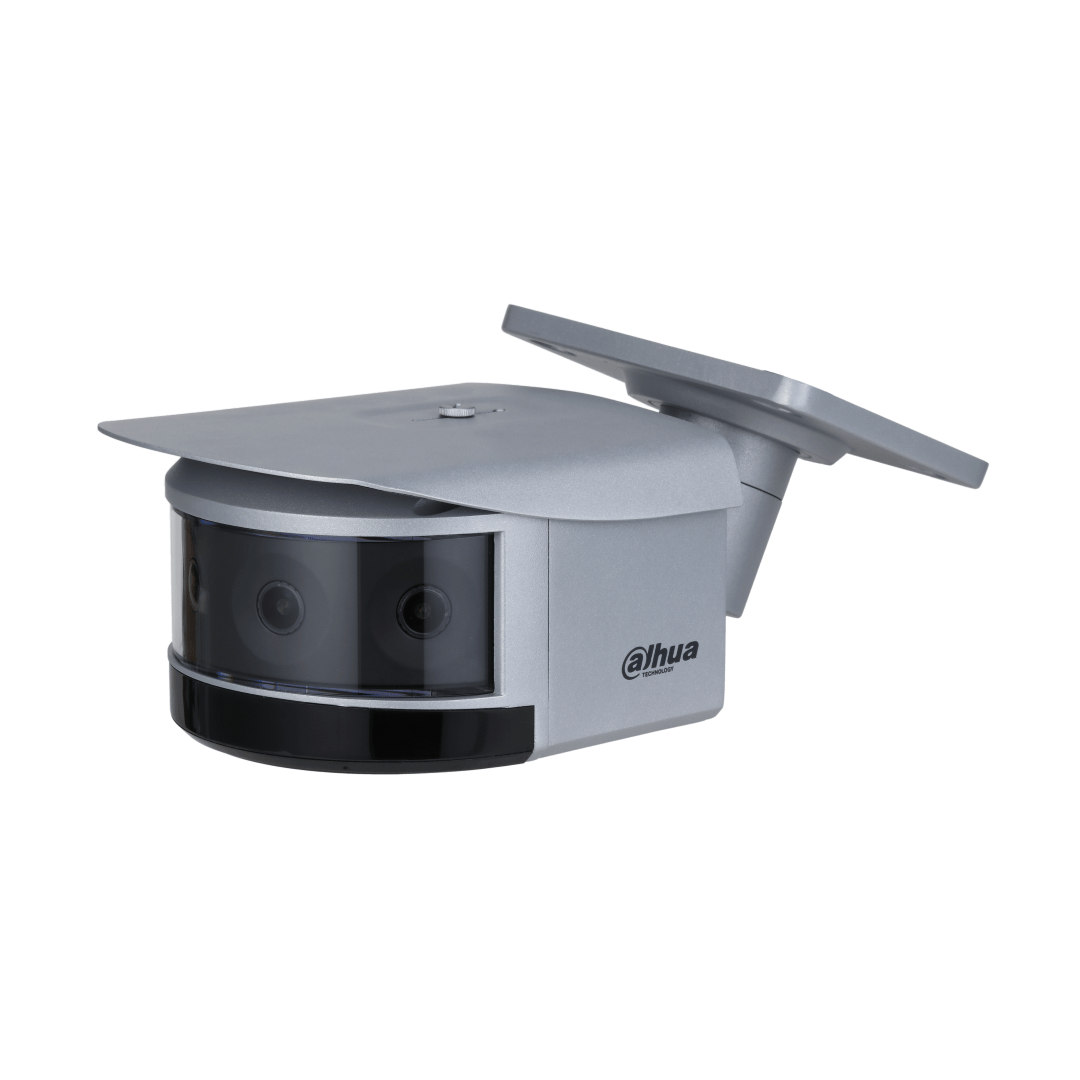

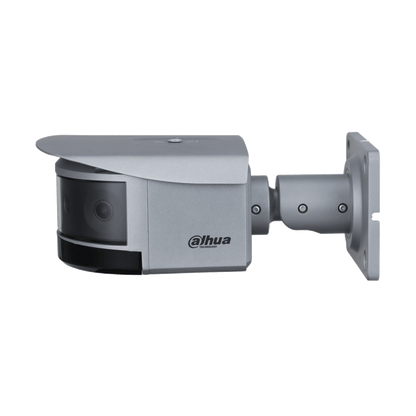

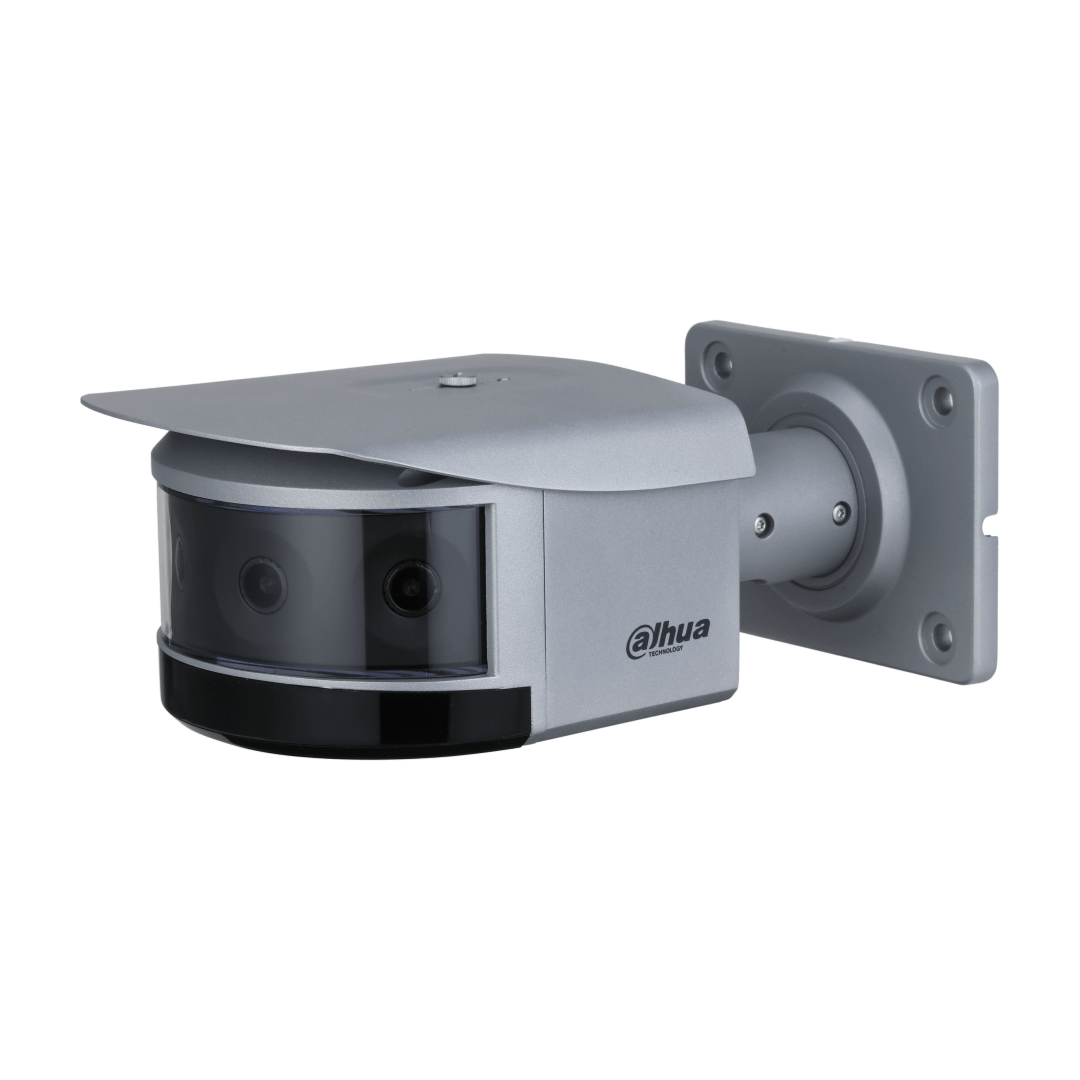

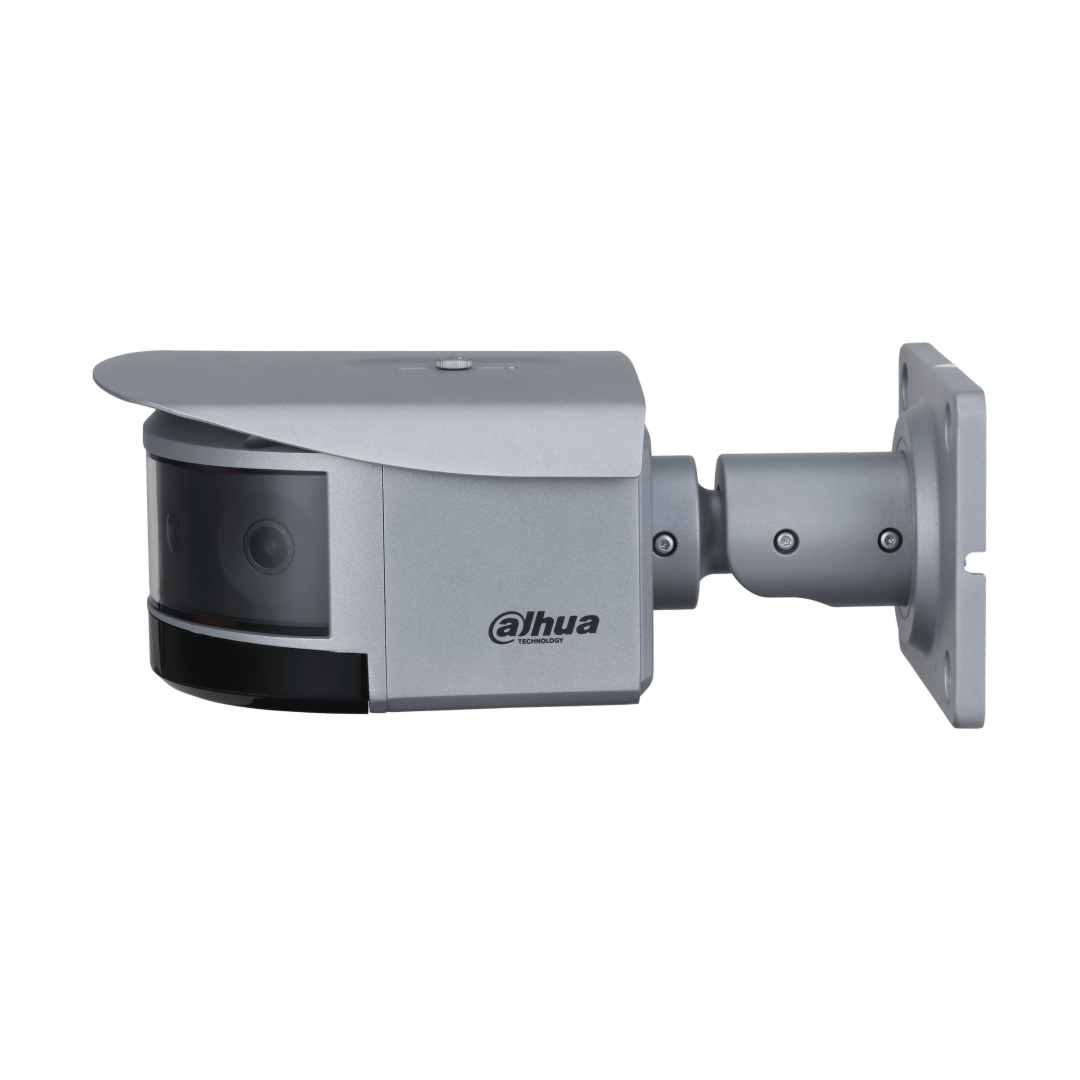

Dahua IPC-PFW81642-A180 — 4× 4MP quad-lens panorama bullet camera with 16MP total resolution and 180° field of view
The Dahua IPC-PFW81642-A180 is a professional quad-lens panorama bullet camera with four 4MP sensors and 4-channel hardware stitching for a seamless 180° panoramic field of view with 16MP total resolution (5520 × 2700). With Smart IR night vision up to 30m, two-way audio, and AI features such as crowd analysis, vehicle detection, and perimeter protection, this camera is ideal for large-scale surveillance of squares, airports, and traffic junctions. The robust IP67 + IK10 housing guarantees reliable operation in the most demanding environments.
Specifications
- Resolution: 4× 4MP (16MP total / 5520 × 2700) @ 25/30 fps
- Sensors: 4× 1/1.8" CMOS
- Lenses: 4× fixed panorama lens
- Field of view: 180° horizontal (4-channel hardware stitching)
- Night vision: Smart IR, max. 30m
- AI: Crowd analysis, vehicle detection, perimeter protection
- Protection rating: IP67 + IK10
- Audio: Two-way via connection cable
- Alarm: 2 in / 2 out
- SD card: Yes, max. 256GB
- Power supply: PoE / 24V AC / 12V DC
- ONVIF: Yes
- App: Dahua (DMSS)
- Color: White
- Dimensions: 298.3 × 172.5 × 120.5 mm
- Warranty: 3 years
Applications
- Large-scale panoramic surveillance with 16MP resolution and 180° field of view
- AI-powered crowd analysis and vehicle detection
- Squares, airports, city centers, and traffic junctions
- Replacing multiple cameras with a single quad-lens solution
Buy safely from an authorized Dahua Partner
We are an official Dahua Partner (no. 7090800010). With us, you buy original products specially suited for the Benelux market, FR, and DE with the correct language, guaranteed software updates, and expert advice.
- ✔100% original Dahua products
- ✔Fully supported firmware updates
- ✔3 or 5 years warranty (for selected products) instead of 2 years
- ✔Staff trained in the latest Dahua (AI) technology
Product specifications
| Manufacturer | Dahua |
|---|---|
| SKU | IPC-PFW81642-A180 |
| EAN | 6923172548320 |
| Version | 180/360º camera's |
| Color | Insight |
| Dimensions | 298.3 mm × 172.5 mm × 120.5 mm |
| Warranty | 3 years |
| Lens | 2.8mm |
| ONVIF | Ja |
| Indoor/Outdoor | Outdoor |
| Resolution | 4MP |
| PoE support | Yes |
| Night vision | Yes |
| Audio | Two-way via connection cable |
| Horizontal viewing angle | 180° |
| Optical zoom | Nee |
| SD card slot | Yes, max. 256 GB |
| Mobile app | Dahua (DMSS) |
Specifications (PDF)
Delivery time
